Tegishli qurilma

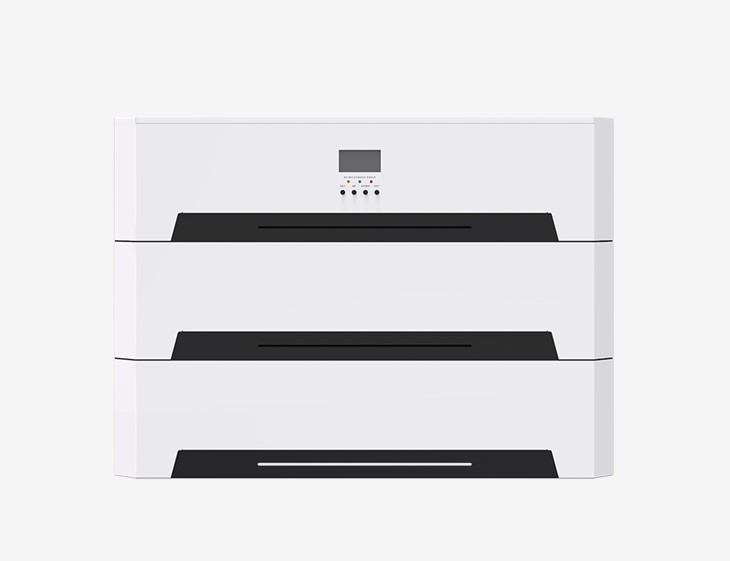

Uy uchun lityum quyoshli bank 220V gibrid quyosh to'plamlari

Batareya turi: LiFePO4
Dizayn muddati: 6000
Quyosh zaryadlash turi: MPPT
Aloqa: RS485/CAN/WIFI

Xususiyatlari

Spetsifikatsiya:

		SR-EOH-5.0SC0	SR-EOH-5.0UC0
Batareya Inverter	Nominal chiqish quvvati	5 kVt	5 kVt
Maksimal maksimal quvvat	10KVA	10KVA
Quvvat omili	1	1
Nominal chiqish kuchlanishi (Vac)	230Vac	120Vac
Chastotasi	50Hz	60Hz
Avtomatik almashtirish davri	＜15 ms	＜15 ms
THD	＜3 foiz	＜3 foiz
AC Zaryadlash	Maksimal AC zaryadlash quvvati	3150W	2100W
AC zaryadlash oqimi diapazoni	0-60A	0-40A
Nominal kirish kuchlanishi	220/230Vac	110/120Vac
Kirish kuchlanish diapazoni	90-280Vac	90-140Vac
AC Chiqish	Nominal chiqish quvvati	5 kVt	5 kVt
Maksimal chiqish oqimi	30A	50A
Chastotasi	50Hz	60Hz
Haddan tashqari yuk oqimi	35A	55A
PV Zaryadlash	Quyosh zaryadining turi	MPPT	MPPT
Maksimal chiqish quvvati	5 kVt	5 kVt
PV zaryadlash oqimi diapazoni	0-80A	0-80A
PV ish kuchlanish diapazoni	120-500V	120-500V
MPPT kuchlanish diapazoni	120-450V	120-450V
General Ma'lumotlar	Ishlash harorati oralig'i	-15 daraja - 55 daraja	-15 daraja - 55 daraja
Saqlash harorati tanga	-25 daraja - 60 daraja	-25 daraja - 60 daraja
Namlik tangasi	5 foizdan 95 foizgacha	5 foizdan 95 foizgacha
Nominal ish balandligi	＜2000m	＜2000m
Sovutish rejimi	Majburiy havo sovutish	Majburiy havo sovutish
Shovqin	60dB(A)	60dB(A)
Kirishni himoya qilish reytingi	IP20	IP20
Sertifikatlash	CE(EN62109-1)	CE(EN62109-1)
EMC sertifikatlash darajasi	EN61000, C2	EN61000, C2
Og'irligi	25 kg	25 kg
Hajmi L × D × H	710×450×192	710×450×192
